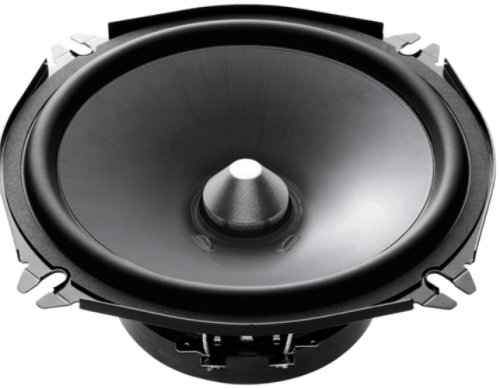

| Pioneer TS-A1702C 6.5-Inch A-Series 250-Watt Component Package |  | Brand: Pioneer
Category: Car Audio or Theater
Buy New: $155.00
as of 7/29/2010 18:06 EDT details
In Stock
New (1) Used (1) from $73.99
Seller: Amazon.com
Rating:  5 reviews
Sales Rank: 4,190
Media: Electronics
Autographed: No
Memorabilia: No
Shipping Weight (lbs): 8.6
Dimensions (in): 15.7 x 8.4 x 8
MPN: TSA1702C
Model: TS-A1702C
UPC: 125628815222
EAN: 0012562881522
Shipping: Eligible for FREE Super Saver Shipping
Availability: Usually ships in 24 hours
| |
| Features:
| • | 6.75-inch component system with 230 watts maximum power handling (50 watts nominal) | | • | Woofers feature composite IMPP cone with interlaced aramid fiber and butyl rubber surround | | • | 7/8-inch soft-dome tweeters with magnetic fluid and neodymium magnet | | • | Outboard crossover with -12dB/octave low- and high-pass filter | | • | Surface, flush, or invisible tweeter mounting |
|
| Accessories:
|
| Similar Items:
| |
| Editorial Reviews:
Amazon.com Product Description
This 6-3/4-inch component system from Pioneer delivers 230 Watts of maximum power (50 Watts nominal), and offers the flexibility and improved soundstage of a component installation. The IMPP woofer cone design provides the rigidity required for powerful bass. The soft-dome tweeters can be flush- or surface-mounted, and can be swiveled to suit the listening environment once installed. The included crossovers ensure a smooth response from both speakers.  | Pioneer's A-Series Speakers Pioneer A-series speakers outperform factory speakers on nearly every level. Packing a powerful punch, A-Series speakers are equipped with up to three independent tweeters with reinforced woofers, so every beat is heard and felt. Featuring a bigger, better cone than most OEM speakers, the A-series boasts serious output and booming bass. Extra-sensitive tweeters play at higher frequencies and are capable of handling stronger audio signals, resulting in vocals that are crisp and clear, even when you crank the volume. |
TS-A1702C Features Composite IMPP Cone with Interlaced Aramid Fiber
With long aramid fibers interlacing together inside, this IMPP cone design provides the strength and rigidity that powerful bass sound requires. High-density compressed internal architecture is resilient, stacks up against high power well and transfers sound quickly. The result is full-bodied, rich sound character with midrange depth that conventional IMPP cones cannot match. Butyl Rubber Surrounds
Durable butyl rubber speaker surrounds won't fall apart under the stress of extreme temperatures, sunlight or time, and help Pioneer's woofers deliver serious bass. Solid Construction
A-Series speakers are easy to install and built to last. From rock-solid cone construction to a heavy-duty, ultra-thick, stamped steel basket, these drivers are ready to handle booming bass and high volumes with ease. High-Quality Crossover
The External -12dB/Octave HPF and LPF crossover improves the transition from mid to high frequency, for a smoother mid-range to tweeter response. Audiophile-grade capacitors and inductors are used, and all components are encased in a clear acrylic cover for protection. Fits 6"x8" Applications
The included 6"x8" adapter allows this component set to also be used in many Ford and Mazda vehicles that feature a 6"x8" speaker application size. |
A complete component system with 230 watts power handling.
Click to enlarge. |
TS-A1702C Specs | Woofer Cone Material: | Composite IMPP Cone with Interlaced Aramid Fiber | | Surround: | Butyl Rubber for Smoother Response | | Voice Coil Bobbin: | Glass-Imide | | Voice Coil Wire: | OFC Copper | | Damper: | Aramid Fiber | | Tweeter: | 7/8" Soft Dome with Magnetic Fluid and Neodymium Magnet | | Basket Design: | Full Depth Basket for Rich Bass Response | | Built-in Passive Crossover: | Outboard Crossover with -12dB/Oct. LPF/HPF | | Speaker Grille: | Included | | Watts MAX. Music Power: | 230 Watts | | Watts Nominal Power Handling: | 50 watts | | Frequency Response: | 31 Hz to 35 kHz | | Sensitivity (1W/1m): | 90 dB | | Ohm Rating: | 4 | | Mounting Depth: | 2-1/2" (62.5 mm) | | Cut-out Dimensions: | 5-1/2" (139 mm) |
Pioneer Car Audio SystemsPioneer's Mobile Business Group is known for offering the kind of in-car products that make driving more enjoyable by offering high quality audio and video, seamless connectivity and ease-of-use. Its focus is on the development of new digital technologies including audio video, navigation and satellite radio, while maintaining its strong heritage in products for car audio enthusiasts and sound competitors.
What's in the Box Pioneer TS-A1702C Component Speaker Package (Two Woofers, Two Tweeters, Two Crossovers), Mounting Hardware, Installation Guide
Product Description
With long aramid fibers interlacing together inside, this IMPP cone design provides the strength and rigidity that powerful bass sound requires. High-density compressed internal architecture is resilient, stacks up against high power well and transfers sound quickly. The result is full-bodied, rich sound character with midrange depth that conventional IMPP cones cannot match.
|
| Customer Reviews:
Excellent for its price June 6, 2009
J. Wong (IL, USA)
2 out of 2 found this review helpful
These are excellent for the price you pay. I installed them myself at the front door panel, piece of cake. The passive cross-over units are molded-in so you don't need to worry abt screws comming loose. For those of you who have had high-end component system, you know what I mean. These here are just "GOOD FOR ITS PRICE". That's all I am saying. I have had better ones but of course, I have an amp driving my previous more expensive component speakers. Also, because the speaker cables on the cross-over units are molded-in, it also means that you cannot use your high end speaker cables for these speakers. But of course, it may be an over-kill to get monster-cable for these speakers. Can't help but to stress that these are good for its price... 8)
For now, I am driving these from my Head Unit (abt 20rms x 4) and the sound is REASONABLY good at AVERAGE volume. Alot also depends on whether your HU has a EQ. Mine has a 7 band EQ and I was able to tune the music to my pref, so that works for me. I have the TS-A6963R at the back panel to support these at the front. Good balance overall for a non-amp, non-fancy set up.
Next, I should be installing a 4-channel for these (i.e., including the TS-A6963R at the back). Currently, my only complain is that the road noise does drown the sound a bit when I am driving at around 80mph. Turning up the vol causes some distortion... I guess that's the limitation when you drive these speakers without an AMP; you are not getting the best out of them...
Of course, getting a sub-woofer (plus a second amp) to boost up the bass will be my third step. More then... Read my reviews for the TS-A6963R, I have installed them earlier... Cheers.
 WOW April 30, 2009
BadPotato (mt. usa)
1 out of 1 found this review helpful
Pioneer will never cease to amaze me. These speakers sound fantastic in my wife's 93 Toyota Camry. We have them running off of deck power from a Pioneer reciever, we could not be more pleased. Thanks again for quality at an affordable price Amazon, oh and don't forget fast shipping.
good speakers for the price February 19, 2009
Chris S. Dowdy
1 out of 1 found this review helpful
good speakers for the price, i have them powered by the radio deck don't recall the watts of the deck but they sound good.
The Best out of the speakers I found for high range February 1, 2009
person who exists
3 out of 3 found this review helpful
Pros: high range - better than any i've heard.
low range - just as good or better than speakers of the same size that I compared to
they say they are oversized but they do fit in my honda civic with its small car door.
Cons: The cost of installation is very high.
It took a few hours for these to get installed (at Best Buy).
Summary: I just got these for my Honda Civic. I compared them to every speaker at different stores that I could find. These were BY FAR the best when it comes to the high range. For those who can appreciate a full range of sound in their music, I would HIGHLY recommend these. If you want a good low frequency speaker, obviously these are 6.5", but they are the best I heard for that size. The Sony speakers I heard were about as good as these for low range sound. The installation is complicated and very expensive where I took them. I never intended to try it myself. The installation will probably cost around 30-40$ more for this type with separate tweeters unless your car is already fit for it.
 do not buy from hookedontronics January 19, 2009
Brent L. Wiley (bon aqua, tn)
2 out of 13 found this review helpful
i purchased the speaker from hookedontronics upon recieving them i took them to a local installer where he informed me that they did not work. i received them Dec. 24th. and sent them back on the 26th. i still havent heard anything from hookedontronics and its almost febuary. i would suggest that no one buys from this company, i have contacted the bbb in their area. so basicaly i just threw 100 dollars away. hopefuly this will help someone with kids like myself not waste their money.
